Motorola Solutions MOTOTRBO R5

Motorola Solutions

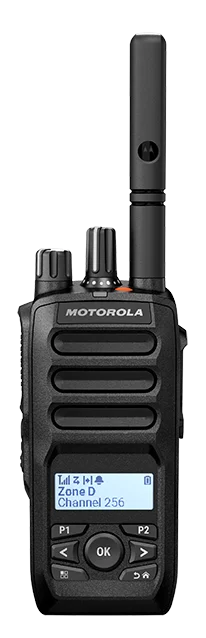

MOTOTRBO R5

MOTOTRBO R5 connects teams, helping boost efficiency and safety with clear, loud audio that cuts through background noise and intuitive status indications and controls so workers can focus on their tasks, all in a tough, compact device that’s built to last.

Performance Characteristics

Frequency bands:
VHF, UHF

Frequency Range:
VHF: 136-174 MHz
UHF: 400-512 MHz

Number of Channels/Groups/Zones:
Limited Keypad Model: 256 Channels/ 50 Zones
Non-Keypad Model: 64 Channels/ 4 Zones

Power Output:
VHF: 5 Watts
UHF: 4 Watts

Channel Spacing:
12.5 / 25 kHz

Battery Life

MOTOTRBO R5 with 3200 mAh battery (PMNN4889)
Digital / Analog Battery Life: 32 / 24 hrs

MOTOTRBO R5 with TIA4950 3200 mAh battery (PMNN4890)
Digital / Analog Battery Life: 32 / 24 hrs

MOTOTRBO R5 with 2200 mAh Slim battery(PMNN4888)
Digital / Analog Battery Life: 21.5 / 16 hrs

Physical Characteristics

Dimensions H x W x D (with standard battery)

MOTOTRBO R5 with 3200 mAh battery (PMNN4889)
4.82 x 2.2 x 1.6 inches

MOTOTRBO R5 with TIA4950 3200 mAh battery (PMNN4890)
4.82 x 2.2 x 1.6 inches

MOTOTRBO R5 with 2200 mAh Slim battery(PMNN4888)
4.82 x 2.2 x 1.37 inches

Weight (with standard battery)

MOTOTRBO R5 with 3200 mAh battery (PMNN4889)
11.2 oz

MOTOTRBO R5 with TIA4950 3200 mAh battery (PMNN4890)
11.7 oz

MOTOTRBO R5 with 2200 mAh Slim battery(PMNN4888)
10 oz

User Environment

Operating temperature
-22 °F to 140 °F

Mil spec

IP Standards
IP67

Request A Quote

Cut through the noise

R5’s loud, clear audio helps the message get through the first time, whether conditions are noisy or quiet.

Loud
If workers can’t hear messages above noisy vehicles, a cheering crowd or heavy plant machinery, safety and efficiency can be compromised. R5’s powerful built-in speaker delivers loud audio so workers can hear messages above background noise and users can even select an extra-loud audio profile for up to 106 phons loudness in extremely noisy environments. A wide selection of headsets and earpieces is also available to allow workers to hear messages discreetly or in high-noise workplaces.

Clear
R5 features a sophisticated AItrained noise suppression algorithm for advanced background noise reduction to help ensure messages are transmitted clearly. Software embedded in the device distinguishes between the talker’s voice and the various types of surrounding noise such as vehicles, crowds and heavy machines; speech is retained while ambient noise is significantly reduced. The MOTOTRBO R5’s low distortion wideband speaker plays received messages loud and clear to help prevent miscommunication.

Consistent
R5 is designed to optimize audio performance across a wide range of workplace environments and worker profiles so users don’t need to constantly adjust the radio volume. Its IMPRES™ technology and Received Audio Leveling smooth out the differences in users’ voice level and microphone placement. Intelligent Audio adjusts the radio output to avoid blaring messages or missed calls, adapting to changes in the background volume or as workers move between noisy and quiet environments.

Focus on the task

Optimized controls, tactile buttons and long battery runtime make R5 easy and intuitive to use all day long so workers can focus on their job, not their radio.

Built to last

R5 has been designed to withstand the knocks and drops of the workplace so it will work as well in the future as it does today.

AN000348A01-N

AN000348A01-N

UHF Short Whip Antenna (400-527 MHz)

PMAD4116

PMAD4116

VHF HELICAL ANTENNA (144-165 MHZ)

PMAD4117

PMAD4117

VHF HELICAL ANTENNA (136-155 MHZ)

PMAD4118

PMAD4118

VHF HELICAL ANTENNA (152-174 MHZ)

PMAD4119

PMAD4119

VHF STUBBY ANTENNA (136-148 MHZ)

PMAD4120

PMAD4120

VHF STUBBY ANTENNA (146-160 MHZ)

PMAD4121

PMAD4121

VHF STUBBY ANTENNA (160-174 MHZ)

PMAD4147

PMAD4147

VHF WHIP ANT ,136-174MHZ

PMAE4069

PMAE4069

UHF STUBBY ANTENNA (400-450 MHZ)

PMAE4070

PMAE4070

UHF STUBBY ANTENNA (440-490 MHZ)

PMAE4071

PMAE4071

UHF Stubby Antenna (470-512 MHz) - FM / UL Approved

PMAE4079

PMAE4079

UHF SLIM WHIP ANTENNA (400-527MHZ)

No Image Available

PMNN4888

BATT IMPRES LIION IP67 2200T STANDARD

No Image Available

PMNN4889

BATT IMPRES LIION IP67 3200T HICAP

No Image Available

PMNN4890

BATT IMPRES LIION TIA4950 IP67 3200T

No Image Available

HLN9985-N

Waterproof Bag, includes large carrying strap

No Image Available

NTN5243-N

Adjustable Nylon Carrying Strap

No Image Available

PMLN4651-N

2" Hard Plastic Belt Clip

No Image Available

PMLN5610-N

ACCESSORY KIT,2.5 INCH SWIVEL BELT LOOP

PMLN5611-N

PMLN5611-N

ACCESSORY KIT,3.0 INCH SWIVEL BELT LOOP

No Image Available

PMLN7008-N

2.5" Hard Plastic Belt Clip

No Image Available

PMLN8662

HARD LEATHER CARRY CASE WITH 3.0 INCH SWIVEL BELT LOOP (LIMITED KEYPAD)

No Image Available

PMLN8663

HARD LEATHER CARRY CASE WITH 3.0 INCH FIXED BELT LOOP (LIMITED KEYPAD)

No Image Available

PMLN8664

NYLON CARRY CASE WITH 3.0 INCH FIXED BELT LOOP (LIMITED KEYPAD)

No Image Available

PMLN8665

HARD LEATHER CARRY CASE WITH 3.0 INCH SWIVEL BELT LOOP (NO KEYPAD)

No Image Available

PMLN8666

HARD LEATHER CARRY CASE WITH 3.0 INCH FIXED BELT LOOP (NO KEYPAD)

No Image Available

PMLN8667

NYLON CARRY CASE WITH 3.0 INCH FIXED BELT LOOP (NO KEYPAD)

No Image Available

RLN6486-N

Boston Leather Fireman's Radio Strap

No Image Available

RLN6487-N

Boston Leather Fireman's Radio Strap - XL

No Image Available

RLN6488-N

Boston Leather Anti-Sway Strap for Boston Leather Fireman's Radio Strap

25009297001-N

25009297001-N

Power Adapter

No Image Available

NNTN7616-N

IMPRES Single-Unit Rapid Rate Vehicular Charger

PMPN4284-N

PMPN4284-N

IMPRES 6 pocket, 1 display charger (suggested replacement for WPLN4212 and WPLN4219)

No Image Available

PMPN4576 CHARGER,CHGR DESKTOP SINGLE UNIT IMPRES EXT PS US/NA/TW-N

CHARGER DESKTOP SINGLE UNIT IMPRES EXT PS US/NA/TW

No Image Available

PMPN5043-N

CHARGER, VEHICULAR TRAVEL W/BASE & COIL CORD

No Image Available

PS000577A01-N

POWER SUPPLY AC/DC WALL LOWLINE FIXED BLADE US/NA/TW/JPN 14.5V/1.15A L6 BARREL

WPLN4243-N

WPLN4243-N

US IMPRES SUC W/O LINEAR POWER SUPP

5080384F72-N

5080384F72-N

Replacement Foam Plugs for RLN5887 and RLN6242. Noise reduction = 25dB (Pack of 50 pairs)

AARLN4885-N

AARLN4885-N

Receive-Only Earbud, FM and UL approved

No Image Available

HKLN4608-N

Replacement Transparent Acoustic Tube and Earbud for HKLN4601A and HKLN4487F, PVC free

No Image Available

NNTN8385-N

Y-Adapter and Retention Hook for Mission Critical Wireless Push-to-Talk Pod

No Image Available

PMLN4620-N

D-Shell Rx-Only Earpiece

No Image Available

PMLN5727-N

Earpiece Inline Microphone/PTT, Swivel, MagOne

No Image Available

PMLN5732-N

Earset w/ Boom Microphone, Mag One

No Image Available

PMLN5733-N

Mag One Earbud with inline microphone and PTT

PMLN6246-N

PMLN6246-N

Replacement Swivel Clip for Wireless PTT Pod

No Image Available

PMLN6754-N

IMPRES 3-Wire Surveillance Kit with quick disconnect translucent tube, black

No Image Available

PMLN6755-N

IMPRES 3-Wire Surveillance Kit with quick disconnect translucent tube, Beige

PMLN6757-N

PMLN6757-N

Adjustable D-style earpiece with in-line microphone and push-to-talk, black

No Image Available

PMLN7188-N

EARPIECE,ENH ATEX 3.5MM EARPIECE W/TRAN TUBE

No Image Available

PMLN7269ANS

2-WIRE SURVEILLANCE KIT W/ QUICK DISCONNECT CLEAR ACOUSTIC TUBE,BLACK

No Image Available

PMLN7270-N

2-WIRE SURVEILLANCE KIT W/QUICK DISCONNECT CLEAR ACOUSTIC TUBE,BEIGE

PMLN7396-N

PMLN7396-N

RX-ONLY ADJ D-STYLE W/STD 3.5MM JACK

PMLN7560-N

PMLN7560-N

Receive-Only Earpiece with Comfort Eartube

PMLN8068-N

PMLN8068-N

EARHOOK EARTIP, S (PACK OF 5)

PMLN8069-N

PMLN8069-N

EARHOOK EARTIP, M (PACK OF 5)

PMLN8070-N

PMLN8070-N

EARHOOK EARTIP, L (PACK OF 5)

No Image Available

PMLN8077-N

OVER-THE-EAR EARPIECE, SINGLE PIN (AAD)

PMLN8092-N

PMLN8092-N

ACOUSTIC TUBE WITH RUBBER EARBUD, REPLACEMENT KIT

PMLN8120-N

PMLN8120-N

RX ONLY XL CLEAR TUBE EARPIECE, 3.5MM JACK

No Image Available

PMLN8125-N

SINGLE PIN, SHORT CORD

No Image Available

PMLN8190-N

1-WIRE ENH CLEAR TUBE EARPIECE, 2.5MM SINGLE PIN, STRAIGHT

PMLN8295-N

PMLN8295-N

2-WIRE SWIVEL LOUD AUDIO EARPIECE WITH EARTIP

No Image Available

PMLN8298-N

WP300 WIRELESS BLUETOOTH CONTROL PUSH-TO-TALK POD

No Image Available

PMLN8332-N

VEHICLE MOUNT FOR WP300

PMLN8337-N

PMLN8337-N

1-WIRE SINGLE EARBUD WITH REMOVABLE EARHOOK LOUD AUDIO EARPIECE

PMLN8341-N

PMLN8341-N

1-WIRE SURVEILLANCE KIT WITH LOUD AUDIO TRANSLUCENT TUBE

PMLN8342-N

PMLN8342-N

2-WIRE SURVEILLANCE KIT WITH LOUD AUDIO TRANSLUCENT TUBE

PMLN8343-N

PMLN8343-N

3-WIRE SURVEILLANCE KIT WITH LOUD AUDIO TRANSLUCENT TUBE

PMLN8363-N

PMLN8363-N

RUBBER SLEEVE FOR EARBUD, S "QTY 1, PACK OF 25"

PMLN8364-N

PMLN8364-N

RUBBER SLEEVE FOR EARBUD, M "QTY 1, PACK OF 25"

PMLN8365-N

PMLN8365-N

RUBBER SLEEVE FOR EARBUD, L "QTY 1, PACK OF 25"

No Image Available

PMLN8644-N

1-WIRE SURVEILLANCE KIT WITH TRANSLUCENT TUBE

No Image Available

PMLN8645-N

2-WIRE SURVEILLANCE KIT WITH TRANSLUCENT TUBE

No Image Available

PMLN8646-N

3-WIRE SURVEILLANCE KIT WITH TRANSLUCENT TUBE

No Image Available

PMLN8652-N

AUDIO ACCESSORY-EARPIECE, RECEIVE ONLY EXTRA LOUD EARPIECE,3.5MM JACK

No Image Available

PMLN8792-N

EP900e OPERATION CRITICAL WIRELESS EARPIECE PTT (EP900w replacement)

No Image Available

RLN4760-N

Small Clear Comfortable Earpiece, right ear

No Image Available

RLN4761-N

Medium Clear Comfortable Earpiece, right ear

No Image Available

RLN4762-N

Large Clear Comfortable Earpiece, right ear

No Image Available

RLN4763-N

Small Clear Comfortable Earpiece, left ear

No Image Available

RLN4764-N

Medium Clear Comfortable Earpiece, left ear

No Image Available

RLN4765-N

Large Clear Comfortable Earpiece, left ear

No Image Available

RLN4941_XL-N

Earpiece Receive Only with Translucent Tube

No Image Available

RLN6242-N

Low Noise Kit with Quick Disconnect translucent tube and clear rubber eartip

No Image Available

RLN6282-N

Replacement standard clear rubber eartip, Pack of 50

No Image Available

RLN6500-N

Bluetooth Accessory Kit with NA Power Supply

No Image Available

RLN6511-N

Clear EP7-Small Hearing Protectors [Sonic Defenders] Ultra Earplugs. Noise reduction = 28dB

No Image Available

RLN6512-N

Clear EP7-Medium Hearing Protectors [Sonic Defenders] Ultra Earplugs. Noise reduction = 28dB

No Image Available

RLN6513-N

Clear EP7-Large Hearing Protectors [Sonic Defenders] Ultra Earplugs. Noise reduction = 28dB

RLN6550-N

RLN6550-N

Wireless Earpiece, Bluetooth Accessory Kit Multi (Pack of 3 PMLN6397)

WADN4190-N

WADN4190-N

Receive-Only Flexible Earpiece

No Image Available

PMLN6635-N

LIGHTWEIGHT HEADSET

No Image Available

PMLN6759-N

HEADSET,TEMPLE TRANSDUCER

No Image Available

PMLN6760-N

Heavy Duty Behind-the-Head Headset with Noise-Canceling boom microphone

No Image Available

PMLN6761-N

HEADSET,ULTRA-LITE HEADSET MAGONE

PMLN6763-N

PMLN6763-N

Heavy Duty Behind-the-Head Headset with Noise-Canceling boom microphone, TIA4950

PMLN7464-N

PMLN7464-N

Heavy Duty Over-the-Head Headset with Noise-Canceling boom microphone

PMLN7465-N

PMLN7465-N

OVER THE HEAD H/DUTY HEADSET/TIA, SLIM

No Image Available

PMLN8789-N

PORTABLE RSM REPLACEMENT, LOW PROFILE SWIVEL CLIP for PMMN4128, PMMN4131, PMMN4140

No Image Available

PMMN4071_L-N

IMPRES RSM large 3.5 jack NC / UL Approved

No Image Available

PMMN4073_L-N

IMPRES Windporting RSM, small 3.5 jack / UL Approved

PMMN4075-N

PMMN4075-N

RSM, small IP57, no Emerg / UL Approved

PMMN4076-N

PMMN4076-N

RSM small 3.5 jack, no Emerg / UL Approved

No Image Available

PMMN4108-N

AUDIO ACCESSORY-REMOTE SPEAKER MICROPHONE,IMPRES WINDPORTING RSM IP67

PMMN4127-N

PMMN4127-N

WM500 Operation Critical Bluetooth RSM

No Image Available

PMMN4170

RM560 IMPRES WINDPORTING REMOTE SPEAKER MICROPHONE, LARGE URSA

No Image Available

PMMN4171

RM530 IMRLN6491BPRES WINDPORTING REMOTE SPEAKER MICROPHONE, SMALL URSA

The Motorola MOTOTRBO R5 is available in the following models.

Non-Keypad Models

  • AAH07JDC9SA1AN VHF, 136-174 MHz, 5 Watts, 64 Channels
  • AAH07RDC9SA1AN UHF, 400-512 MHz, 4 Watts, 64 Channels

Limited Keypad Models

  • AAH07JDH9SA1AN VHF, 136-174 MHz, 5 Watts, 256 Channels
  • AAH07RDH9SA1AN UHF, 400-512 MHz, 4 Watts, 256 Channels
